Khamis, 30 April 2009

sample collection





Sample received today from intersil, maxim, keystone, austiaelectronic dan st. Macam dpt QSL card lak...nak cukupkan sebakul.

The famous microcontroller PIC



Paling banyak project PIC menggunakan 16F84A dan 16F628A. Parts ni microchip mcm maleh nak buat je. So kiranya parts ni dah matured. DIYer mula berpindah ke PIC yang lebih besar capacity memorynya mcm 16F887 atau yang future 16F1938 dan 16F1939. Kalau beli dipasaran mungkin 84A dan 628A leh menjangkau Rm30 sebiji. So apa lagi...request je la.

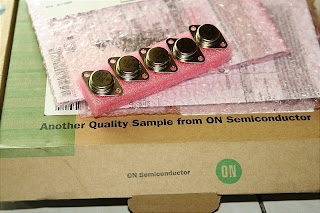

Sample from ONsemi

Onsemi ni generous juga cuma every sample request perlu byr USD20 untuk shipping dan handling fee. Mereka juga mempunyai 4 jenis engineering kit yang boleh direquest. Very good service from ON. Bilangan pieces yang boleh disample bergantung kepada harga..kalau parts tu mahal, boleh request sikit, kalau murah..boleh request sampai 10 pieces. Gambar diatas adalah Bipolar 50A NPN transistor TO3 package.

1000W RF Power transistor


Very expensive RF power transistor. Baru dapat hari ini. Ikut spec 1000w. Cuma leh request 1 pieces. Nak simpan buat stock. Kalau check harga dia di futureelectronics.com menjangkau sehinggan USD570.17....

Features


  • Typical Pulsed Performance at 450 MHz: VDD = 50 Volts, IDQ = 150 mA, Pout = 1000 Watts Peak (200 W Avg.), Pulse Width = 100 µsec, Duty Cycle = 20%
    Power Gain: 20 dB
    Drain Efficiency: 64%
  • Capable of Handling 10:1 VSWR, @ 50 Vdc, 450 MHz, 1000 Watts Peak Power
  • CW Operation Capability with Adequate Liquid Cooling
  • Qualified Up to a Maximum of 50 VDD Operation
  • Integrated ESD Protection
  • Excellent Thermal Stability
  • Designed for Push-Pull Operation
  • Greater Negative Gate-Source Voltage Range for Improved Class C Operation
  • RoHS Compliant

Ahad, 26 April 2009

Echolink dx

Another dx contact from Trinidad and Tobago

2009-04-26 10:42:07 2009-04-26 10:54:14 9Y4MYA M.Y.

73

Echolink dx

Got contact from brazil;

2009-04-26 10:32:24 2009-04-26 10:35:51 PU2KEJ MIGUEL SAO PAULO (1)

tnx Miguel fer nice qso, 73

Sabtu, 25 April 2009

Speed internet streamyx

Itulah hasil pengujian kelajuan streamyx yang digunakan sekarang. Just ok ler. Kalau nak download mcm-mcm, guna di saltmine yang kelajuannya lebih kurang 5.6Mbps.

Jumaat, 24 April 2009

Apa yang dibuat bila di base station?

Bila balik keja, memang malas nak g keluar. Lagi2 bila dah ngadap komputer. Inilah keja2 yang dibuat bila ada kat umah.

  1. Baca email
  2. Request sample
  3. Baca facebook
  4. Monitor echolink
  5. Monitor 10m band.
  6. Monitor 2m band local
Gambar kat atas tu adalah gambar diambik ari ni kat saltmine. Kasi mau tukar sama itu gambar blogger profile. Itu olang ada hensem ka? heheeh

Yeah, got super power RF transistor




Believe or not...USD146.46 per pieces RF power transistor giving as a sample for free. 2 pieces 600W and 300W respectively.

Features

  • Typical DVBT OFDM Performance: VDD = 50 Volts, IDQ = 2600 mA, Pout = 125 Watts Avg., f = 225 MHz, Channel Bandwidth = 7.61 MHz, Input Signal PAR = 9.3 dB @ 0.01% Probability on CCDF.
    Power Gain: 25 dB
    Drain Efficiency: 28.5%
    ACPR @ 4 MHz Offset: –61 dBc @ 4 kHz Bandwidth
  • Typical Pulsed Performance: VDD = 50 Volts, IDQ = 2600 mA, Pout = 600 Watts Peak, f = 225 MHz, Pulse Width = 100 µsec, Duty Cycle = 20%
    Power Gain: 25.3 dB
    Drain Efficiency: 59%
  • Capable of Handling 10:1 VSWR, @ 50 Vdc, 225 MHz, 600 Watts Peak Power, Pulse Width = 100 µsec, Duty Cycle = 20%
  • Integrated ESD Protection
  • Excellent Thermal Stability
  • Designed for Push-Pull Operation
  • Greater Negative Gate-Source Voltage Range for Improved Class C Operation
  • RoHS Compliant
  • In Tape and Reel. R6 Suffix = 150 Units per 56 mm, 13 inch Reel.

Selasa, 21 April 2009

Intersil, Silabs and Maxim samples



Sample from silabs. USB to UART ic. Thanks silabs...


IC TCXO 32.768KHZ IND 14-DIP - DS32KHZN/DIP - Crystals and Oscillators . Thanks MAXIM..



Saja nak request RS232 dan RS485 transiever IC...anyway, thanks again to Intersil for this great service.

Isnin, 20 April 2009

Malaysia amateur radio event calendar

Disini saya ingin menjemput rakan2 yang berminat untuk menyertai segala event berkenaan Ham Radio di Malaysia menggunakan google calendar. Kelebihan google calendar ialah:

  1. SMS/email/popup notification - need to be setup
  2. Calendar sharing
  3. Import/export dan sync dengan mobile phone.
Dengan berkongsi google calendar kita boleh merapatkan warga ham iaitu dengan:
  1. Event info berkenaan radio amatur di Malaysia
  2. Propagation report
  3. Check net reminder
  4. RAE/CW test reminder/notification
  5. Contest notofication
  6. dan banyak lagi....
Cara untuk join google calendar Ham Radio Malaysia ialah:
  1. Mempunyai google/gmail account
  2. Aktifkan google calendar anda
  3. Setup phone anda untuk menerima sms dari Google (free)
  4. Add public calendar yang telah saya sediakan dengan memasukkan friend calendar - alamat email saya ialah brahym@gmail.com
  5. Untuk yang ingin contribute, sila emailkan email anda kepada saya supaya saya boleh tukar privilage anda.
Pada blog saya juga telah dimasukkan calendar seperti ditunjukkan diatas. Ianya masih lagi kosong dan banyak ruangan yang perlu diisi. Jika ada rakan yang ingin berkongsi, marilah kita sama-sama memakmurkan lagi calendar Ham Radio Malaysia ini.

73,

Ahad, 19 April 2009

DXing today

  1. BD7NWF - 5/5
  2. YC9MDX - 5/8
tnx & 73

Khamis, 16 April 2009

Buku-buku yang bagus...

Alang-alang bagi satu link je so kali ni semua link berkaitan U.S.Navy NEETS program iaitu bahan rujukan utama utk Navy disertakan..Apa lagi..download je..:-)

This is an excellent electronics training program but some of the material is specific to the Navy.
The basics are all here.

Module 1- Introduction to Matter, Energy, and Direct Current
Chapter 1 - Matter, Energy, and Electricity
Chapter 2 - Batteries
Chapter 3 - Direct Current

APPENDIX
Glossary
Laws of Exponents
Square and Square Roots
Comparison of Units in Electric and Magnetic Circuits; and Carbon Resistor Size Comparison by Wattage Rating
Useful Formulas for D.C. Circuits


Module 2- Introduction to Alternating Current and Transformers
Chapter 1 - Concepts of Alternating Current
Chapter 2 - Inductance
Chapter 3 - Capacitance
Chapter 4 - Inductive and Capacitive Reactance
Chapter 5 - Transformers

APPENDIX
Glossary
Greek Alphabet
Square and Square Roots
Useful AC Formulas
Trigonometric Functions
Trigonometric Tables


Module 3- Introduction to Circuit Protection, Control, and Measurement
Chapter 1 - Circuit Measurement
Chapter 2 - Circuit Protection Devices
Chapter 3 - Circuit Control Devices

APPENDIX
Glossary
Laws of Exponents
Schematic Symbols
Cross Reference of Military and Commercial Fuse Designations


Module 4- Introduction to Electrical Conductors, Wiring Techniques and Schematic Reading
Chapter 1 - Electrical Conductors
Chapter 2 - Wiring Techniques
Chapter 3 - Schematic Reading

APPENDIX
Glossary
Standard Wire Tables
Electrical and electronic Symbols


Module 5- Introduction to Generators and Motors
Chapter 1 - DC Generators
Chapter 2 - DC Motors
Chapter 3 - AC Generators
Chapter 4 - AC Motors

APPENDIX
Glossary


Module 6- Introduction to Electronic Emission, Tubes, and Power Supplies
Chapter 1 - Introduction to Electron Tubes
Chapter 2 - Special-Purpose Tubes
Chapter 3 - Power Supplies

APPENDIX
Glossary


Module 7- Introduction to Solid-State Devices and Power Supplies
Chapter 1 - Semiconductor Diodes
Chapter 2 - Transistors
Chapter 3 - Special Devices
Chapter 4 - Solid-State Power Supplies

APPENDIX
Glossary
Periodic Table of Elements

Module 8- Introduction to Amplifiers
Chapter 1 - Amplifiers
Chapter 2 - Video and Rf Amplifiers
Chapter 3 - Special Amplifiers

APPENDIX
Glossary

Module 9- Introduction to Wave-Generation and Wave-Shaping
Chapter 1 - Tuned Circuits
Chapter 2 - Oscillators
Chapter 3 - Waveforms and Wave Generators
Chapter 4 - Wave Shaping

APPENDIX
Glossary
Square and Square Roots Table



Module 10- Introduction to Wave Propagation, Transmission Lines, and Antennas
Chapter 1 - Wave Propagation
Chapter 2 - Radio Wave Propagation
Chapter 3 - Principles of Transmission Lines
Chapter 4 - Antennas

APPENDIX
Glossary


Module 11- Microwave Principles
Chapter 1 - Waveguide Theory and Application
Chapter 2 - Microwave Components and Circuits
Chapter 3 - Microwave Antennas

APPENDIX
Glossary


Module 12- Modulation Principles
Chapter 1 - Modulation Principles
Chapter 2 - Angle and Pulse Modulation
Chapter 3 - Demodulation

APPENDIX
Glossary


Module 13- Introduction to Number Systems and Logic Circuits
Chapter 1 - Number Systems
Chapter 2 - Fundamental Logic Circuits
Chapter 3 - Special Logic Circuits

APPENDIX
Glossary
Logic Symbols

Module 14- Introduction to Microelectronics
Chapter 1 - Microelectronics
Chapter 2 - Miniature/Microminiature (2M) Repair Program and High-Reliability Soldering
Chapter 3 - Miniature and Microminiature Repair Procedures

APPENDIX
Glossary

Module 15- Principles of Synchros, Servos, and Gyros
Chapter 1 - Synchros
Chapter 2 - Servos
Chapter 3 - Gyros
Chapter 4 - Related Devices

APPENDIX
Glossary

Module 16- Introduction to Test Equipment
Chapter 1 - Test Equipment Use
Chapter 2 - Miscellaneous Measurements
Chapter 3 - Basic Meters
Chapter 4 - Common Test Equipment
Chapter 5 - Special-Application Test Equipment
Chapter 6 - The Oscilloscope and Spectrum Analyzer

APPENDIX
Glossary


Module 17- Radio-Frequency Communications Principles
Chapter 1 - Introduction to Radio-Frequency Communications
Chapter 2 - Introduction to Communications Theory
Chapter 3 - Fundamental Systems Equipment
Chapter 4 - Introduction to Satellite Communications
Chapter 5 - Introduction to Miscellaneous Communications Systems and Equipment

APPENDIX
Glossary

Module 18- Radar Principles
Chapter 1 - Radar Fundamentals
Chapter 2 - Radar Subsystems
Chapter 3 - Radar Indicators and Antennas
Chapter 4 - Radar System Maintenance

APPENDIX
Glossary

Module 19- The Technician's Handbook
Chapter 1 - The Technician's Handbook

Module 20- Master Glossary of Terms
Chapter 1 - Master Glossary of Terms

Module 21- Test Methods and Practices
Chapter 1 - Basic Measurements
Chapter 2 - Component Testing
Chapter 3 - Quantitative Measurements
Chapter 4 - Qualitative Measurements
Chapter 5 - Waveform Interpretation

APPENDIX
Glossary


Module 22- Introduction to Digital Computers
Chapter 1 - Operational Concepts
Chapter 2 - Hardware
Chapter 3 - Software
Chapter 4 - Data Representation and Communications

APPENDIX
Glossary

Module 23- Magnetic Recording
Chapter 1 - Introduction to Magnetic Recording
Chapter 2 - Magnetic Tape
Chapter 3 - Magnetic Tape Recorder Heads
Chapter 4 - Magnetic Tape Recorder Transports
Chapter 5 - Magnetic Tape Recorder Record and Reproduce Electronics
Chapter 6 - Tape Recorder Specifications
Chapter 7 - Digital Magnetic Tape Recording
Chapter 8 - Magnetic Disk Recording

APPENDIX
Glossary

Module 24- Introduction to Fiber Optics
Chapter 1 - Background on Fiber Optics
Chapter 2 - Fiber Optic Concepts
Chapter 3 - Optical Fibers and Cables
Chapter 4 - Optical Splices, Connectors, and Couplers
Chapter 5 - Fiber Optic Measurement Techniques
Chapter 6 - Optical Sources and Fiber Optic Transmitters
Chapter 7 - Optical Detectors and Fiber Optic Receivers
Chapter 8 - Fiber Optic Links

APPENDIX
Glossary

Introduction to Wave Propagation, Transmission Lines, and Antennas


Buku keluaran Department of The Army US ini sangat lengkap untuk sesiapa yang ingin mendalami teori disebalik gelombang. Rugi kalau tak donlod.

Donlod kat sini.

LM3876T sample request




Yet another sample from national Semiconductor the audio Power Amplifier Series High-Performance 56W Audio Power Amplifier w/Mute
56W continuous average output power into 8
100W instantaneous peak output power capability
Signal-to-Noise Ratio >= 95 dB(min)
An input mute function
Output protection from a short to ground or to the supplies via internal current limiting circuitry
Output over-voltage protection against transients from inductive loads
Supply under-voltage protection, not allowing internal biasing to occur when |VEE| + |VCC| <= 12V, thus eliminating turn-on and turn-off transients
11-lead TO-220 package
Wide supply range 20V - 94V

Graphic LCD/GLCD sample




GLCD ini adalah untuk EasyPic5 board. Disamping me'request sample' GLCD 128X64, saya pon minta LCD 8X1 dan 8X2. 2 sample per part. GLCD ni kalau beli di kedai mau ada RM120 seunit. Sample direct from Hong Kong.

Isnin, 13 April 2009

Banyaknyerrrr sample hari ini..



antara sample yang diterima hari ini ialah:

  1. DS1305
  2. DS1306
  3. DS1307 dari maxim
  4. MAX232
  5. MAX7219
  6. LIS3LV02DL 3 Linear Accelerometer 3-Axis ±2g/ ±6g with SPI/I2C
  7. M24M01-RMN6TP 3 1 Mbit Serial I&#178C bus EEPROM
  8. M48T35Y-70PC1 3 TIMEKEEPER SRAM
  9. OP07CN 3 Very low offset, bipolar op-amp
  10. STCL132KWDEAW89 3 Frequency Accuracy of +/- 1.2%
  11. TDA0161DP 3 -
  12. TDA7267 3 2W
  13. TDA7449 3 3 band tone controlAudio processor
  14. Zilog MCU dan Flash
  15. Farnell 500pcs 0.1uF film capacitor
  16. 315Mhz AFK RF module
  17. Dan banyak lagiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Syoknyaaaaaaa

Khamis, 9 April 2009

National and maxim




The second batch sample from national semicon. Just ordering 5 pcs LM386-N from them. This is for amplify the ISD audio of my student project. The second envelope is from Maxim-ic. Maxim entertaining all sample requests from customer.

Rabu, 8 April 2009

Fuhhh...legaa

Alhamdulillah, hari ini telah selamat sampai ke MCMC tanpa ada kesukaran, jem dan sebagainya. Tiba seawal jam 9.30AM di Cyberjaya. Then debaran memuncak bila memasuki dewan..almaklumler first timer. Sudah ramai yang tiba awal dan rakan-rakan semuanya nampak cool. Bila sesi testing...darah gemuruh mula tiba...apapun dah tiba di MCMC, exam ini perlu diteruskan juga. Akhirnya jam 1.40PM apabila result telah dikeluarkan untuk 'receiving session', barulah lega bila melihat nama tersenarai untuk yang LULUS. Debaran seterusnya ialah untuk 'sending session'. Berbekalkan k12 cw keyer, ujian sending dijalankan dengan lancar....bagi rakan2 yang berani dan tekad untuk mendapatkan 9M..teruskan usaha. cherioooo

Selasa, 7 April 2009

Kemet capacitors literature

Want to know about Kemet capacitors and product they are offering. Just log on their website and request literature from there. Kemet also offering an SMT engineering kit for those interested to evaluate Kemet capacitor. Mine not arrive yet. Thanks Kemet...

www.kemet.com

NJR/JRC semiconductor - very difficult to find.


Anybody knows the distributor for NJR component here? A_very_hard_to_find NJR actually arrived to my school mailbox today. 5 components per tube and 5 parts total. Thanks to NJR Singapore for giving me the precious sample..for those interested for making VOX, NJM2072D is the solution.

An email about microchip sample


Sebelum ni cuma boleh request 2 sample sebulan tapi sekarang microchip telah menukar policynya kepada 10 sample request setiap 40 hari....Hidup microchip!!!

p/s - dengarnya Atmel pun Microchip mau beli. Atmel ni agak sukar untuk memberi sample pada end user. Freescale pula, sample request feenya sangat mahal. So mungkin sebab tu PIC Microchip lebih banyak pengguna berbanding pembuat microcontroller yang lain.

===================================================================

Dear Ibrahim Kadri,

Thank you for your interest in Microchip Technology. Currently - Business, Consultant, and University have up to 10 sample orders (2 line items per order and 3 devices per line) every 40 days. If you reach that limit, you will then have to wait 40 days before ordering again..

Best Regards,

Microchip Samples Team


From: "Ibrahim Kadri (9W2IBR)" <brahym@gmail.com>@MICROCHIP
Sent: Saturday, March 28, 2009 3:07 AM
To: OnlineSampleOrderSupport
Subject:

Good day,

I want to ask about sample order limit. I have six order before reaching the limit. What happen if I reach the limit. Is it no more order can be made or I need to wait i.e. 30days before placing new order?

Thanks.


===================================================================

Doakan kejayaanku


2 more days to go. CW exam at MCMC cyberjaya. Minggu ni sangat QRL dengan mengiring student wakil sekolah untuk kejohanan tenis daerah dan juga menyiapkan project 'Smart Restroom' oleh student untuk pertandingan Innovasi Sekolah Asrama Penuh pada hari Khamis ini....masa bila mau training CW...apapun cuti dah ambil untuk hari Rabu ini (8/4/09) untuk exam tersebut. Ada untung balik petang...kalau tak balik pagi :-(.

Isnin, 6 April 2009

Intersil sample


The generous Intersil giving me a sample today. They using fedex and the samples as follow:

Samples Requested
Part1:ISL12022IBZ
Qty:2
Est. Annual Usage:<100
Sample Reference Number:P0971024
Part2: ISL12026AIBZ
Qty: 2
Est. Annual Usage:<100
Sample Reference Number: P0971025
Part3: ICM7211AMIPL
Qty: 2
Est. Annual Usage:<100
Sample Reference Number: P0971026
Part4: X9221AWPIZ
Qty: 2
Est. Annual Usage:<100
Sample Reference Number: P0971027

Very difficult to find DIL package at intersil. They usually produce SMD package component. Only manage to get 2 pieces per sample part FOC. Thanks Intersil...

Ahad, 5 April 2009

Taubat Seorang Hamba


Sebagai selingan, rakan-rakan boleh download lagu ini.

IRSYADEE Feat HAFIZ HAMIDUN - Taubat Seorang Hamba
(Part Hafiz)
Hati hiba mengenangkan dosa2 yg ku lakukan,
Oh Tuhan Maha Kuasa,

Terima taubat hamba berdosa...


(Part Irsyadee)

Ku akui kelemahan diri,

Ku insafi kekurangan ini,

Ku kesali kejahilan ini,
Terimalah 3x.....

Taubatku ini.....


(Part Irsyadee)

Telah aku merasakan derita jiwa dan perasaan,

Kerana hilang dari jalan menuju redhaMu ya Tuhan.

(Part Irsyadee)
Ku akui kelemahan ini,

Ku insafi kekurangan ini,

Ku kesali kejahilan ini,

Terimalah 3x...

Taubatku ini...

(Part Hafiz)

Di hamparan ini ku meminta moga taubatku diterima...

(Part Irsyadee)

Ku akui kelemahan ini,

Ku insafi kekurangan ini,

Ku kesali kejahilan ini,

Terimalah 3x....

Taubatku ini...


(Part Hafiz)

Ku akui kelemahan ini,

Ku insafi kekurangan ini,

Ku kesali kejahilan ini,

Terimalah 3x..

Taubatku ini...

Download

Sabtu, 4 April 2009

Buku elektronic



Ini adalah buku yang sangat related kepada hobi Ham Radio. Rugi kalau anda tidak download. Agak sukar untuk mendapatkan pdf ebook ini. Nasib baik masih terjumpa. Tapi malangnya file rar ini ada password pulak. So kena cari winrar password remover yang boleh buang password rar file ini.

STAMP 2 Communications and Control Projects - T. Petruzzellis(2003)
http://rs16.rapidshare.com/files/19700824/STAMP_2_Communications_and_Control_Projects_-_T._Petruzzellis__2003__WW.rar

Untuk remove password
http://rapidshare.com/files/149089856/WinRAR.Password.Remover.full.rar
atau
http://rs469.rapidshare.com/files/163518473/WinRAR.Password.Remover.full.rar

Link diatas semua tidak bekerja....tapi setelah hampir 12jam bermati-matian mencari pdf ebook ini dan akhirnya jumpa juga. Sila email saya utk dptkan copy. Antara isi kandungan yang terdapat didalam ebook ini ialah:

Acknowledgments xiii
Introduction xv
Chapter 1 The BASIC STAMP 2 1
Advantages of STAMP 2 3
Approaches to Construction 5
Alternative STAMP 2 7
An Exercise 12
Chapter 2 STAMP 2 Input/Output Interfacing 17
Configuring Switches 18
Interfaces for the Microprocessor 21
Serial Port Interfacing 23
Receiving Serial Data 26
Networking STAMP 2s 28
STAMP 2—RS-485 Communications Network 30
Chaper 3 Serial Building Blocks 37
Dallas DS1302 Real-Time Clock Chip 38
Dallas DS1620 Digital Thermometer/Thermostat 39
Linear Technologies LTC1298 12-Bit Analog-to-Digital Converter 40
Xicor X25640 8-kbyte EEPROM 40
K1EL IBM AT Keyboard to RS-232 Serial Converter 42
Sony Infrared Decoder Chip 42
SVID Single-Chip Video Controller 44
SN7516 Differential Bus Transceiver 46
HA7S ASCII to 1-Wire Host Adapter 46
Eight-Channel Infrared Remote Control System 47
Addressable Serial-to-Parallel Converter 50
Addressable Parallel-to-Serial Encoder 52
Addressable A/D and Digital Input/Output Control Device 53
56-Channel Radio Remote Control System 55
32-Channel Serial Input Scanner Alarm System 56
Multichannel Remote Serial I/O System 57
Chapter 4 10Base-T Network Cable Tester 63
Basic Components 63
Construction of the Cable Tester 64
Programming of the Cable Tester 67
10Base-T Network Cable Tester Parts List 67
vii
For more information about this title, click here.
Copyright 2003 by The McGraw-Hill Companies, Inc. Click Here for Terms of Use.
Chapter 5 IrDA Communicator 71
Conserving Power 72
Basic Components 73
Construction of the Communicator 77
IrDA Communicator (Low-Power Version) Parts List 77
Chapter 6 Multichannel Radio Alarm System 81
Basic Components 82
Construction 85
Multichannel Alarm Transmitter Parts List 88
Multichannel Alarm Receiver/Display Parts List 90
Chapter 7 Lightning Activity Monitor 95
Lightning Sensor 95
Display Board 98
Programming the Unit 99
Lightning Activity Monitor Sensing Head Assembly Parts List 103
Lightning Activity Monitor Main Display Unit Parts List 104
Chapter 8 Twelve-Channel Radio Remote Control System 107
Transmitter 108
Receiver 109
Twelve-Channel Radio Remote Control Transmitter Parts List 114
Twelve-Channel Radio Remote Control Receiver/Controller Parts List 115
Chapter 9 Caller ID/Blocker Project 121
Basic Components 122
Operation 125
Caller ID/Blocker Parts List 133
Chapter 10 Radio DTMF Tone Decoder and Display 135
Two Projects 136
Touch-Tone Generator 136
Decoder Display 141
Touch-Tone Generator/Dialer Parts List 143
Touch-Tone Decoder/Display Parts List 144
Chapter 11 Radio DTMF Tone Decoder/Control 149
Basic Components 150
DPDT Relay 152
Silent Radio 154
Programming 157
Radio DTMF Controller (Figure 11-1) Parts List 157
Radio DTMF Controller (Figure 11-2) Parts List 159
Chapter 12 Morse Code Radio Keyer Project 161
About Morse Code 161
Building the Keyer 162
Programming the Keyer 165
Morse Keyer Parts List 170
VIII CONTENTS
Chapter 13 Amateur Radio Fox/Beacon Project 171
Use as a Beacon 172
Description of the Project 176
Fox/Beacon Project Parts List 178
Fox Hunting Clubs 179
Beacon Software Web Sites 179
Chapter 14 Radio Mailbox 181
Basic Components 182
Programming Connections 187
Power Supply 187
Radio Mailbox Construction 189
Operating the Radio Mailbox 189
Radio Mailbox Parts List 191
Chapter 15 Orb-Tracker: Automatic Satellite AZ-EL
Rotor Control 193
Basic Components for Orbit 360 194
Power Supply 196
Basic Components for Yaesu 5500 196
Positional Readout 196
Construction of the Orb-Tracker 196
Orb-Tracker Orbit 360 Parts List 199
Orb-Tracker Yaesu 5500 Parts List 199
Chapter 16 Ham Radio Repeater 207
Repeater Function 208
Basic Components 209
Programming the Repeater 214
Ham Radio Repeater Parts List 224
Optional TS-64 CTCSS Tone Board Parts List 225
Chapter 17 Balloon Telemetry Controller 227
Basic Components 228
Construction of the Controller 228
Two Configurations 230
Controller Operation 231
Balloon Telemetry Project Parts List 234
Chapter 18 R/C Kite/Glider Digital Camera System 237
Basic Components 238
Construction of the Interface 240
Installation 241
Connecting the Systems 243
R/C Digital Camera Control System Parts List 244
Chapter 19 Tele-Alert 251
Basic Components 253
Constructing Tele-Alert 255
Operating Tele-Alert 256
CONTENTS IX
Alarm Configuration 259
Tele-Alert Parts List 261
Chapter 20 Page-Alert 263
Basic Components 265
Programming the Page-Alert 268
Using Page-Alert 271
Chapter 21 Data-Alert 273
Basic Components 274
Construction of the Data-Alert Board 278
Modem Module Board 278
Real-Time Clock Chip 281
Modem Module Operation 282
Setting up the Data-Alert 282
Uses for Data-Alert 290
Data-Alert (Main Board) Parts List 291
Modem Board (Daughter Board) Parts List 292
Chapter 22 Input Sensor Modules 293
Motion Module 293
Construction of the Motion Module 295
Assembling the Unit 297
Motion Module Parts List 297
Alarm Sensor Module 299
Normally Open/Closed Input Loop Sensor Board 299
Alarm Sensor Module Parts List 299
Temperature/Voltage Level Module Kit 300
Building the TVL Module 301
Testing the TVL Board 302
Temperature/Voltage Level Module Parts List 303
Listen-in Module Kit 303
Basic Components 303
Constructing the Module 304
Assembling to the Tele-Alert Board 305
Listen-in Module Parts List 306
Chapter 23 Data-Term Unit 307
Circuit Description 307
Building the Data-Term Unit 311
Operating the Unit 312
Data-Term Parts List 319
Chapter 24 Weblink Monitoring System 321
Basic Components 322
Comparator Circuit 325
Connecting Devices 325
Construction of the System 326
Modes of Operation 331
X CONTENTS
Setting Up and Operating the System 332
Identifying Network Location 333
Additional Software 334
Weblink Monitoring System Board Parts List 334
Web-Server Module Assembly Parts List 335
Threshold Comparator Board Parts List 335
Alarm Loop Input Circuit Parts List 336
Chapter 25 X-Link Internet Control System 337
Basic Components 338
Keyboard Controller 340
Connecting Power Devices 341
Construction of the Board 341
Setting up and Operating the System 343
Identifying Network Location 344
Additional Programs 353
X-Link Control System Board Parts List 354
X-Link Web-Server Module Assembly Parts List 354

Jumaat, 3 April 2009

FT50-43 toroid limited quantity available

Kepada sesiapa yang berminat untuk mendapatkan ferrit core FT50-43 bolehlah menghubungi saya di alamat email brahym@gmail.com. Masih hot lagi dan baru sampai tetapi stock sangat terhad. Toroid ini adalah bahan asas untuk membuat HF SWR bridge. Bagi yang ingin homebrewing digital HF SWR meter bolehlah mendapatkannya. Untuk info pembinaan IK3OIL digital SWR/Power meter boleh download file pdf ini. Jika ingin mendapatkan hex filenya juga boleh hantar email kepada saya.
